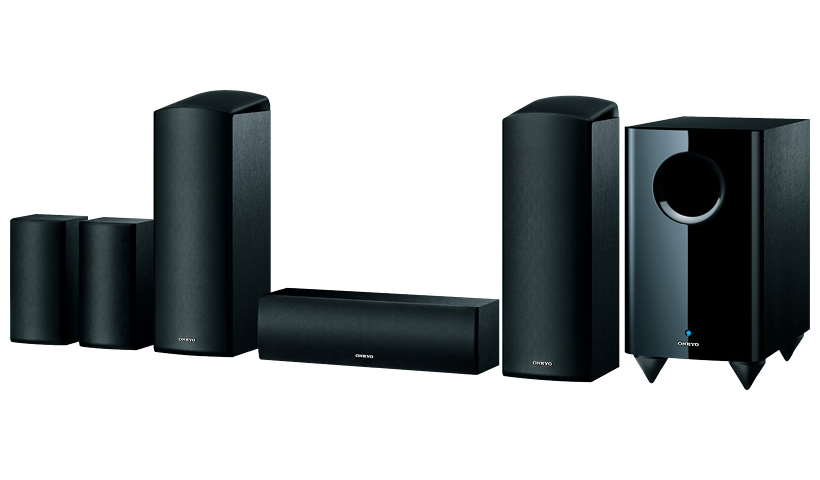

Onkyo SKS-HT588 Dolby Atmos Speaker Package - 5.1.2 Channel
5.1.2-Channel Home Theater Speaker System
Experience The Magic Of Next-Gen Theater Sound
This six-piece speaker package reproduces everything from multidimensional Dolby Atmos® soundtracks to MP3s streamed from your phone with utmost precision. Two-way front speakers feature large paper-cone woofers and balanced-dome tweeters to articulate wide-spectrum audio with timing, clarity, and scale. They include an upfiring driver housed in a compartment in the top of the cabinet which bounces “sound objects” contained in Dolby Atmos and DTS:X™ soundtracks off the ceiling and into the audience, convincingly replicating sounds that originate from overhead. Joining two compact, wall-mountable surround-sound speakers and the dual-drive 2-Way center speaker is a powerful 10-inch subwoofer delivering up to 80 W of wall-shaking bass. Finished in elegant black hairline, the SKS-HT588 package is the most convenient way to get immersed in next-generation theater sound magic.
FRONT SPEAKERS
SKF-2800 DOLBY ATMOS®-ENABLED INTEGRATED FRONT & HEIGHT SPEAKERS
12 cm Cone Woofer
2.5 cm Balanced-Dome Tweeter
8 cm Cone (Separately Powered By Height Channel)
Max. Input Power: 130 W
Wall-Mounting Capability
CENTER SPEAKER
SKC-594 2-WAY BASS REFLEX CENTER SPEAKER
8 cm Cone Woofer x 2
2.5 cm Balanced-Dome Tweeter
Max. Input Power: 130 W
Wall-Mounting Capability
SURROUND SPEAKERS
SKR-594 FULL-RANGE ACOUSTIC-SUSPENSION SURROUND SPEAKERS
8 cm Cone
Max. Input Power: 130 W
Wall-Mounting Capability
SUBWOOFER
SKW-658 BASS REFLEX POWERED SUBWOOFER
20 cm Cone
Rated Output Power: 80 W
(Minimum Continuous Power, 4 Ohms, 100 Hz, 1%, IEC)
Energy-Saving High Power Amplifier
Down-Firing Design
GENERAL SPECIFICATIONS
SKF-2800 Dolby Atmos®-Enabled Integrated Front & Height Speakers
Impedance: 6 Ohms
Frequency Response: 55 Hz–50 kHz (Front), 80 Hz–20 kHz (Height)
Dimensions (W x H x D): 155 x 467 x 183 mm
Weight: 3.7 kg
SKC-594 2-Way Bass Reflex Center Speaker
Impedance: 6 Ohms
Frequency Response: 65 Hz–50 kHz
Dimensions (W x H x D): 409 x 115 x 121 mm
Weight: 2.2 kg
SKR-594 Full-Range Acoustic-Suspension Surround Speakers
Impedance: 6 Ohms
Frequency Response: 80 Hz–20 kHz
Dimensions (W x H x D): 115 x 230 x 96 mm
Weight: 1.0 kg
SKW-658 Bass Reflex Powered Subwoofer
Frequency Response: 27 Hz–150 Hz
Dimensions (W x H x D): 230 x 425 x 410 mm
Weight: 7.7 kg
