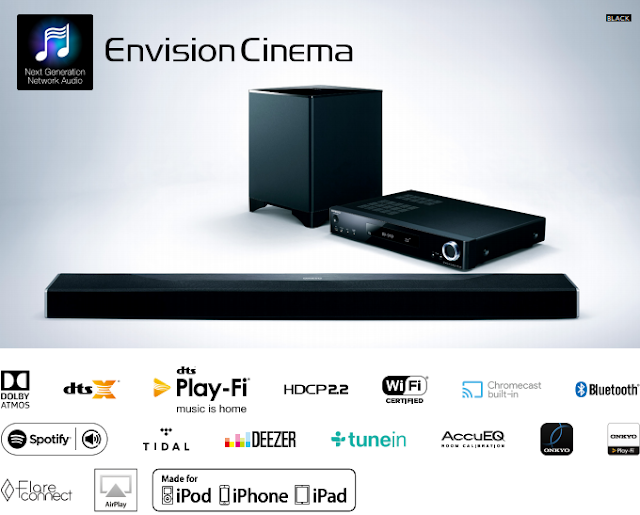

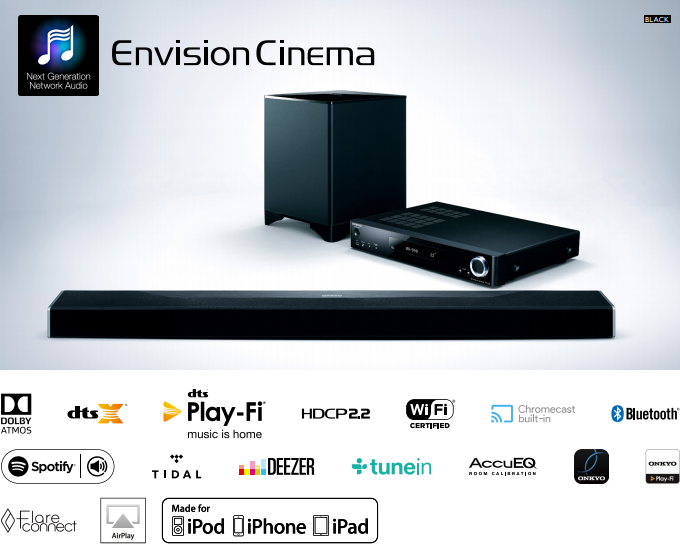

The LS7200’s low-profile form contains a multi-driver array fed by a slim external amp connected via a single cable, reproducing Dolby Atmos® and DTS:X® soundtracks with conviction. Effects move from channel to channel, immersing you in multidimensional sound, while music streamed via Chromecast built-in* , AirPlay, or DTS Play-Fi®* over Wi-Fi® has substance that others can’t match. Players connect to the receiver’s four HDMI® inputs, and wiring is concealed for a near-invisible install. With multi-room audio distribution to any component or speaker supporting Chromecast built-in, DTS Play-Fi®, or FlareConnect™*, LS7200 tailors entertainment around your lifestyle.
HT-L05 5-Channel Network Receiver
- Dolby Atmos® and DTS:X® Object-based Audio Playback for an Immersive Multidimensional Listening Experience
- Discrete Dialog Control Technology for DTS:X
- DTS Neural:X™ Upmixing for Standard Multichannel Audio Formats
- New Surround Enhancer Mode Based on Dolby® Technology
- Dual-band 5 GHz/2.4 GHz Wi-Fi for Stable Network Connection
- Ready for Onkyo Controller App*1 Integrated Multi-room Intuitive Operation
- Features Chromecast built-in*2 Wireless Audio Streaming Platform
- DTS Play-Fi*2 Shares Music from Onkyo Music Control App to Receiver and Wireless Speakers
- AirPlay Audio Streaming from iTunes and iPad, iPhone, and iPod touch
- Supports Spotify®, TIDAL, TuneIn, and Deezer*3
- Bluetooth® Wireless Streaming Technology (Version 4.1+LE)
- 5-Channel Digital Amplification System for Powerful 50 W/Ch Performance (4 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC)
- 4 HDMI® Inputs / 1 Output (with ARC/CEC Multilink Control) Supporting 4K/60p, HDCP 2.2, HDR10, and BT.2020
- AccuEQ Room Acoustic Calibration for Balanced Soundfield (Setup Mic Included)
- FlareConnect™*2 Multi-room Audio Distribution to Compatible Components and Speakers
- DSD Decoding*4 (2.1-Channel/5.6 MHz, Multichannel 2.8 MHz) via Network, HDMI, and USB
- Assignable Digital Audio Input (Optical) and Analog RCA Input • 1080p Video Upscaling to 4K Resolution
- FM Tuner with 40-Station Memory Preset
- USB Type-A Input for USB Memory Audio Playback • Graphical User Interface and Simple Remote Controller
- Tone Control (Bass/Treble) ±10 dB for Front L/R Channels
- A/V Sync Function (-100 to 500 ms at 48 kHz in 5 ms Steps)
- Multiple Listening Enhancement Modes to Suit Content
- CinemaFILTER™ Audio Mode
LB-403 Soundbar System
- Ultra-low-profile Design for Unobstructed Vision
- Dual-driver System for L/R Channels, Dual Center Drivers, and Discrete Height Speakers Enabling Object-based Surround-Sound
- Multichannel Audio Cable for Soundbar Connection
- Solid Build Quality, Chic Style, and Excellent Finish SLW-403 Wireless Powered Subwoofer
- Powered Bass Reflex Design
- Rated Output Power: 50 W (4 Ω, 100 Hz, 1%, IEC)
- 16 cm Cone Woofer
- Sculpted Feet and Quality Finish
*1 For iOS and Android™ devices. Please check App Store or Google Play for
device and OS requirements. *2 Enabled with a firmware update.
*3 Service availability may vary with region. Please confirm before purchase.
Subscription may also be required. *4 DSD not supported over wireless LAN.
Dolby Atmos® and DTS:X® Object-based Audio
DTS:X and Dolby Atmos are not mere improvements to existing formats; they’ve revolutionized sound mixing. Free from the channel bed, sound comes from all directions, even above, with angled drivers bouncing effects off the ceiling and into the audience. No extra speakers or cables required: just authentic and immersive sound from all around.
Wide Choice of Listening Modes
A suite of advanced sound programs are on hand including new Surround Enhancer, a listening mode based on Dolby® technology, which wraps sound around the audience by means of virtual rear speakers. DTS Neural:X™, meanwhile, upmixes multichannel formats to 3D audio, while a variety of DSP programs tweak audio response to best suit music, movies, and games.
Music Made Easy with Chromecast built-in*
Stream any music from your smartphone, laptop, or PC to the LS7200 with ease. Control playback with Chromecastenabled apps you know and love from your iPhone, iPad, Android™ phone or tablet, Mac or Windows® laptop, or Chromebook. * Enabled with firmware update.
Ready for DTS Play-Fi®* Multi-room Audio
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android™ smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their own music in their room or group of rooms. DTS Play-Fi lets you easily structure a comprehensive multi-room ecosystem that satisfies virtually any need. For more information, visit www.play-fi.com. * Enabled with a firmware update.
Life’s Easy with Onkyo Controller
Our free app collects next-gen network functionalities, including streaming services and network audio, into an intuitive control interface. Perform general operations or send music to compatible speakers from your phone.
Internet Radio and On-demand Streaming
TIDAL, Deezer, and TuneIn are baked into the GUI, which makes it super easy to select music using Onkyo Controller or the included remote. Spotify® subscribers can also cast direct from Spotify app to soundbar.
Clean and Simple Connection
How do we send five audio channels to the soundbar without a tangle of wires? Simple: signals pass through a pin-type Multichannel Audio Cable. Plug your players into the receiver, link to the TV with a single HDMI®, and let simplified installation enhance sound with a cleaner look.
FlareConnect™ Wireless Multi-room Audio
FlareConnect* shares audio from network and external audio input sources between compatible components. Enjoy effortless multi-room playback of LP records, CDs, network music services, and more with supported components and speaker systems. Music selection, speaker grouping, and playback management across the home are built into the Onkyo Controller app**.
* Sharing audio from external inputs is enabled with a future firmware update. External audio inputs supporting FlareConnect may differ depending on model. Please consult individual product specifications for more information. ** Download free from the App Store or Google Play.
AccuEQ Room Acoustic Calibration
In moments, AccuEQ measures and analyzes sound output from your speakers and performs corrections for beautifully clear and cohesive object audio in your listening space.
Powerful Amps for Moving Sound
The receiver’s slim form contains an efficient digital amplification system with independent power supply to deliver loads of clean power to the soundbar. Wireless sub has its own 50 W amp for deep LFEs in movies and games.
Multi-Driver Soundbar System
Pairs of drivers are featured on the left, right, and center channels, while separate woofers reproduce height effects. Despite a slim profile of only 53 mm*, the multi-driver system delivers confident and cinematic sound with a clear view of the screen. * Excluding protruding parts.
Wi-Fi®, AirPlay, and Bluetooth® Technology
Dual-band 5 GHz/2.4 GHz Wi-Fi assures a stable connection so you can stream over AirPlay and the local network. Bluetooth wireless technology provides a quick and simple streaming from your choice of app and device.
SPECIFICATIONS
5-Channel Network Receiver (HT-L05) Amplifier Section
Power Output 50 W/Ch
(4 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
Input Sensitivity and Impedance 200 mV/47 kΩ (Line)
Tone Control ±10 dB, 90 Hz (Bass)
±10 dB, 7.5 kHz (Treble)
Signal-to-Noise Ratio 80 dB (Line, SP out)
Tuner Section
Tuning Frequency Range FM 87.5 MHz–108 MHz
FM Preset Memory 40 Stations
General
Power Supply AC 100–240 V~, 50/60 Hz
Power Consumption 60 W
Standby Power Consumption 0.38 W (Standby),
2.0 W (Network Standby)
Dimensions (W x H x D) 435 x 70 x 325.5 mm
Weight 4.0 kg
SPEAKER SYSTEM
Soundbar System (LB-403)
Speaker Type Acoustic Suspension
Front (W x H): 70 mm x 40 mm Cone x 4
Center (W x H): 70 mm x 40 mm Cone x 2
Height: 58 mm Cone x 2
Frequency Response 100 Hz−20 kHz
Output Sound Pressure Level 78 dB/W/m (L/C/R), 78.6 dB/W/m (TL/TR)
Nominal Impedance 4 Ω
General
Dimensions (W x H x D) 950 x 55 x 80 mm
Weight 2.3 kg
Subwoofer (SLW-403)
Speaker Type Active, Bass Reflex
Driver 16 cm Cone
Frequency Response 30–200 Hz
Rated Output Power 50 W (4 Ω, 100 Hz, 1%)
Output Sound Pressure Level 90 dB/W/m
Power Consumption 15 W
Standby Power Consumption 0.32 W
General
Dimensions (W x H x D) 261 x 338 x 269 mm
Weight 6.2 kg
CARTON
Dimensions (W x H x D) 1,098 x 354 x 518 mm
Weight 18.0 kg
Supplied Accessories
• Soundbar connection cable
• Speaker setup microphone
• FM wire antenna
• Quick Start Guide
• Remote controller
• AAA (R03) batteries x 2
• Power cord for SLW-403
• Non-skid pads x 4
